| Batch | Type | Fleet numbers | Manufactured | Into Service | Withdrawn | Quantity |
|---|---|---|---|---|---|---|
| 1. | K2 | 309 | 1969 | 1969 | 1993 | 1 |
| 2. | K2 | 310 – 329 | 1971 | 1972 | 1983 – 1997* | 20 |
| 3. | K2 | 330 – 354 | 1974 | 1974 – 1975 | from 1986 | 25 |
| 4. | K2 | 355 – 374 | 1975 | 1976 | from 1991 | 20 |
| 5. | K2 | 375 – 394 | 1977 | 1977 | from 1996* | 20 |
| 6. | K2YU | 7085 – 7087 | 1983 | 1983 | from 2009 | 3 |

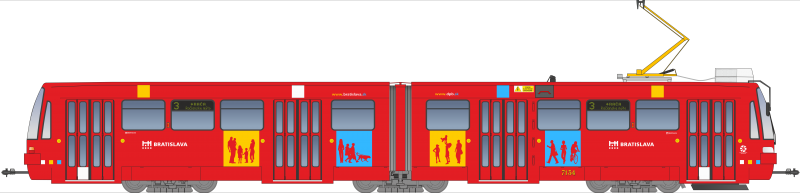

| 7. | K2S | 7126 – 7134 | Autumn 2007 – May 2009 | 2008 – 2009 | — | 9 |
| Total | 1969 – 2009 | 98 | ||||
| * Historic vehicle saved | ||||||
| Length | 20400 mm |
|---|---|
| Length over couplers | 21504 mm |
| Width | 2500 mm |
| Height | 3041.5 mm (K2)
3075 mm (K2S) |
| Working height | 6015 mm (K2S) |
| Height of floor | 900 mm |
| Doors | 4 |
| Number of seats | 47 + 2 (#309 so stanovišťom sprievodcu)
46 + 2 (do roku 1975 so stanovišťom sprievodcu) 49 + 1 44 + 1 (K2S okrem #7131) |
| Number of standing places | 177 (K2; 8 os./m2)
108 (K2 a K2S okrem #7131; 5 os./m2) |
| Design load | 223 + 2 (do roku 1975 so stanovišťom sprievodcu; 8 os./m2)
226 + 1 (8 os./m2) 152 + 1 (K2S okrem #7131; 5 os./m2) |
| Weight of unloaded vehicle | 21800 kg (K2)
23870 kg (K2S) |
|---|---|
| Gross vehicle weight | 37200 kg (K2S) |
| Motor control | ČKD UA 12 (K2, K2YU), odporová regulácia so zrýchľovačom
ČKD TV8 (K2G), pulzná regulácia s GTO tyristormi, možnosť rekuperácie ČKD TV14 (K2S #7101 - 7106), pulzná regulácia s IGBT tranzistormi, možnosť rekuperácie Alstom/Cegelec TV Progress (K2S #7107 - 7135), pulzná regulácia s IGBT tranzistormi, pri #7107 - 7111 s analógovým regulátorom, pri #7112 - 7135 už s digitálnym mikroprocesorovým regulátorom, možnosť rekuperácie |
| Engine | TE 022, jednosmerný, sériový, štvorpólový, vzduchom chladený, 300 V, 150 A |
| Continuous power output | 40 kW |
| Number of motors | 4 |
| Total power output | 160 kW |
| Maximum speed | 65 km/h |
| 7103 | vehicle in service: 23 (23.5 %) |
| 7129 | today in service: 2 (2 %) |
| 7117 | vehicle ot of service (more than 2 weeks): 8 (8.2 %) |
| 317 | vehicle ot of service (more than 6 months): 1 (1 %) |
| 7019II | withdrawn vehicle: 75 (76.5 %) |
| 7103 | historic vehicle: 3 (3.1 %) |
| 7019II | fleet number 7019 used 2 times by this type of vehicle |
| 1. | 2. | 3. | 4. | ||||
|---|---|---|---|---|---|---|---|
| 309 | 7001 | 7019II | |||||
| 310 | 7002 | ||||||
| 311 | 7003 | ||||||
| 312 | 504 | 7004 | |||||
| 313 | 7005 | 7026II | |||||
| 314 | 7006 | 7047II | 7103 | ||||
| 315 | 7007 | 7027II | |||||
| 316 | 7008 | ||||||
| 317 | 7009 | 317 | |||||
| 319 | 511 | 7010 | |||||
| 320 | 7011 | ||||||
| 321 | 7012 | 7027III | |||||
| 322 | 7013 | 7037II | |||||
| 323 | 7014 | ||||||
| 324 | 7015 | 7037III | |||||
| 325 | 7016 | 7036II | |||||
| 326 | 7017 | 7035II | |||||
| 327 | 7018 | 7053II | |||||
| 328 | 7019 | 7001II | |||||
| 329 | 7020 | ||||||
| 330 | 7021 | 7053III | 7117 | ||||
| 331 | 7022 | 7044II | |||||
| 332 | 7023 | ||||||
| 333 | 7024 | ||||||
| 334 | 7025 | ||||||
| 335 | 7026 | ||||||
| 336 | 7027 | ||||||
| 337 | 7028 | 7045II | |||||
| 338 | 7029 | ||||||
| 339 | 7030 | ||||||
| 340 | 7031 | ||||||
| 341 | 7032 | ||||||
| 342 | 7033 | ||||||
| 343 | 7034 | ||||||
| 344 | 7035 | 7017II | |||||
| 345 | 7036 | ||||||
| 346 | 7037 | ||||||
| 347 | 7038 | ||||||
| 348 | 7039 | ||||||
| 349 | 7040 | 7102 | |||||
| 350 | 7041 | ||||||
| 351 | 7042 | 7079II | |||||
| 352 | 7043 | ||||||
| 353 | 7044 | 7022II | |||||
| 354 | 7045 | ||||||
| 355 | 7046 | 7078II | 7122 | ||||
| 356 | 7047 | ||||||
| 357 | 7048 | 7101 | |||||
| 358 | 7049 | 7079III | 7124 | ||||
| 359 | 7050 | ||||||
| 360 | 7051 | ||||||
| 361 | 7052 | ||||||
| 362 | 7053 | ||||||
| 363 | 7054 | 7113 | |||||
| 364 | 7055 | ||||||
| 365 | 7056 | ||||||
| 366 | 7057 | 7115 | |||||
| 367 | 7058 | 7118 | |||||
| 368 | 7059 | 7108 | |||||
| 369 | 7060 | 7114 | |||||
| 370 | 7061 | 7104 | |||||
| 371 | 7062 | ||||||
| 372 | 7063 | 7120 | |||||
| 373 | 7064 | ||||||
| 374 | 7065 | 7109 | |||||
| 375 | 7066 | 7105 | |||||
| 376 | 7067 | 7106 | |||||
| 377 | 7068 | 7116 | |||||
| 378 | 7069 | ||||||
| 379 | 7070 | 7110 | |||||
| 380 | 7071 | ||||||
| 381 | 7072 | ||||||
| 382 | 7073 | 7123 | |||||
| 383 | 7074 | ||||||
| 384 | 7075 | 7121 | |||||
| 385 | 7076 | ||||||
| 386 | 7077 | 7125 | |||||
| 387 | 7078 | ||||||
| 388 | 7079 | ||||||
| 389 | 7080 | 7119 | |||||
| 390 | 7081 | 7107 | |||||
| 391 | 7082 | 7112 | |||||
| 392 | 7083 | 7111 | |||||
| 393 | 7084 | ||||||
| 394 | 8133 | ||||||
| 7087 | 7135 | ||||||
.
