S499.1023
Reply on: Peter6607 #5:
Dá sa predpokladať, že tá stredná Rába neobsahuje generátor vytia.
| Set | Type | Fleet numbers | Manufactured | Into Service | Withdrawn | Quantity |
|---|---|---|---|---|---|---|

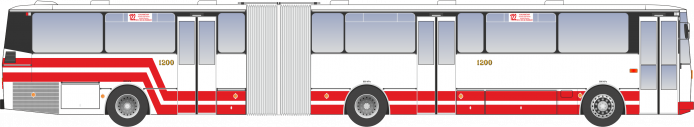

| 1. | Karosa C 744.20 | 1200 | 1987 | 1987 | 2001 | 1 |
| 2. | Karosa C 744.24 | 1201 | 1989 | 1989 | 2010 | 1 |
| Total | 1987 – 1989 | 2 | ||||
| Length | 17355 mm |
|---|---|
| Width | 2500 mm |
| Height | 3165 mm |
| Height of floor | 890 mm |
| Wheelbase | 5600 mm a 6270 mm |
| Doors | 3 |
| Number of seats | 60 + 1 |
| Number of standing places | 70 |
| Design load | 130 + 1 |
| Weight of unloaded vehicle | 13800 kg |
| Gross vehicle weight | 24000 kg |
| Engine | LIAZ ML 637, naftový, vodou chladený 6-valec s priamym vstrekovaním |
|---|---|
| Continuous power output | 189 kW / 2000 rpm |
| Piston displacement | 11940 cm3 |
| Maximum speed | 86 km/h |
| Transmission | Praga 5AB 120, automatická (#1200)
Praga 5P 80.40, manuálna, 5-stupňová (#1201) |
| Steering wheel | Technometra 712 HRSB-350-6-01, hydraulické monoblokové servoriadenie |
| Axles | predná: LIAZ 442, nezávislé zavesenie kolies, lichobežníková konštrukcia
stredná: RÁBA A 572.20, tuhá, vlečená zadná: RÁBA A 007/009, tuhá, jednostupňová, hnacia |
| Tyres | 295/80 R 22,5 |
