VehiclesTrams (Trolleys) › Ganz #21 - 30

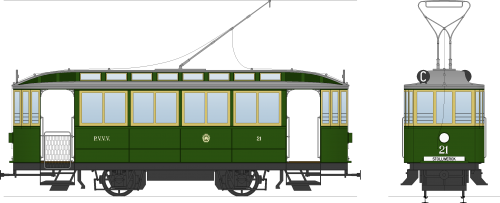

Ganz #21 - 30 in possible green livery

Fleet List

SetTypeFleet numbersManufacturedInto ServiceWithdrawnQuantity
1. Ganz 21–30 1912 1912 – 1913 1940's – 1950's 10
Total: 1912   10

Technical Data

Length:~ 8810 mm
9810 mm (po rekonštrukcii)
Length over couplers:10720 mm (po rekonštrukcii)
Width:2100 mm
2200 mm (so schodíkmi)
Height:3391 mm (bez zberača)
Working height:5600 mm
Height of floor:860 mm (nástupné plošiny)
1060 mm (v salóne)
Wheelbase:3300 mm
Doors:4 (po rekonštrukcii)
Number of seats:26
28 (po rekonštrukcii)
Number of standing places:23 + 1
31 + 1 (po rekonštrukcii)
Design load:49 + 1
59 + 1 (po rekonštrukcii)
Weight of unloaded vehicle:10500 kg (po rekonštrukcii)
Gross vehicle weight:14630 kg (po rekonštrukcii)
Motor Control:Ganz - kontroléry Sp II 35/600 (4+5 jazdných stupňov a 6 brzdových), po rekonštrukcii aj strešné automaty Siemens S, liatinové odpory Siemens K 44/VIII
Engine:Ganz TS 70
Ganz TB 5 (po výmene motora)
Siemens D 491 (po rekonštrukcii)
Continuous power output:29,8 kW / 530 rpm (TS 70, TB 5)
26,5 kW / 625 rpm (D 491)
Number of motors:2
Total power output:59,6 kW (TS 70, TB 5)
53,0 kW (D 491)
Maximum speed:40 km/h

Vehicle catalogue

1 2 3 4 5 6 7 8 9 10

  • Number of vehicles in service: 0 (0%)
  • Number of withdrawn vehicles: 10 (100%)

Legend

10withdrawn vehicle

Renumbered Fleet Numbers

1.2.
21 1from 1932
22 2from 1934
23 3from 1932
24 4from 1933
25 5from 1934
1.2.
26 6from 1933
27 7from 1932
28 8from 1934
29 9from 1935
30 10from 1934
