VehiclesTrolleybuses › Škoda 24 Tr Irisbus

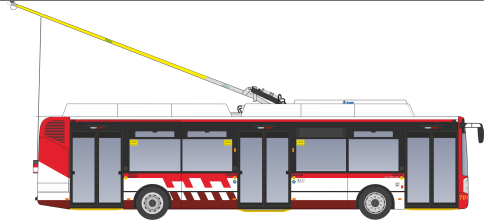

Škoda 24 Tr Irisbus #701

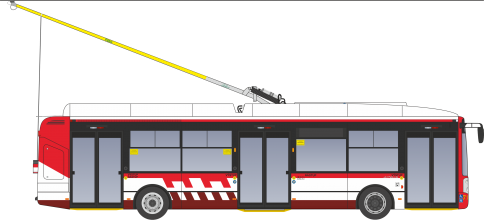

Škoda 24 Tr Irisbus #712

Fleet List

Set Type Fleet numbers Manufactured Into Service Withdrawn Quantity
1. Škoda 24 Tr Irisbus 701 – 703 2006 2006 from 2020 3
2. Škoda 24 Tr Irisbus 705 – 706 2007 2007 2
3. Škoda 24 Tr Irisbus 711 – 712 2008 2008 2
Total 2006 – 2008   7

Technical Data

Length 12090 mm
12490 mm (so stiahnutými zberačmi)
Width 2500 mm
Height 3460 mm
Height of floor 320 mm (1. dvere)
330 mm (2. - 3. dvere)
Wheelbase 6120 mm
Doors 3
Number of seats 30 + 1
Number of standing places 69
Design load 99 + 1
Weight of unloaded vehicle 11000 kg
Gross vehicle weight 18000 kg
Motor control Škoda Electric, založená na IGBT tranzistoroch, s rekuperáciou
Engine Škoda 7ML 3550 K/4, asynchrónny
Continuous power output 210 kW
Number of motors 1
Total power output 210 kW
Maximum speed 65 km/h
Axles predná: Renault E 70 XH, tuhá (#701 - #703)
predná: RI 75 BUS, nezávislé zavesenie kolies (#705 - #706, #711 - #712)
zadná: ZF AV 132.80, portálová
Tyres 275/70 R 22,5

Fotografie

Vehicle catalogue

701 702 703

705 706

711 712

Number of vehicles in service: 6 (86 %)

Number of withdrawn vehicles: 1 (14 %)

Legend

712vehicle in service
701vehicle ot of service
703vehicle ot of service
702withdrawn vehicle
