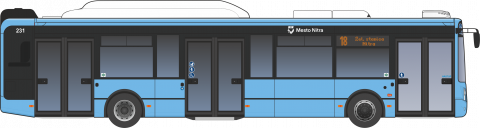

Iveco Urbanway 12M CNG

Fleet List

Set	Type	Fleet numbers	Manufactured	Into Service	Withdrawn	Quantity
1.	Iveco Urbanway 12M CNG	231 – 232	2015 – 2016	2022 – 2023	—	2
Total			2015 – 2016			2

Length	12000 mm
Width	2500 mm
Height	3301 mm
Height of floor	320 mm (1. dvere) 330 mm (2. dvere) 340 mm (3. dvere)
Wheelbase	6120 mm
Doors	3
Weight of unloaded vehicle	12460 kg
Engine	FPT Industrial Cursor 8 CNG, Euro 6, plynový 6-valec

Continuous power output	213 kW / 2000 rpm
Piston displacement	7790 cm³
Maximum torque	1100 Nm / 1100 rpm
Transmission	VOITH D 864.6 (DIWA.6), automatická 4-stupňová, s integrovaným retardérom
Steering wheel	ZF Servocom 8098, integrovaný hydraulický posilňovač
Axles	predná: Iveco RI 75 U, nezávislé zavesenie kolies zadná: ZF AV 132, hnacia, portálová s dvojitou redukciou
Tyres	275/70 R 22,5
