VehiclesSAD BB Buses › Karosa ŠM 11

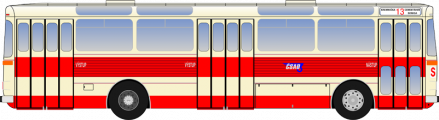

Karosa ŠM 11.1608

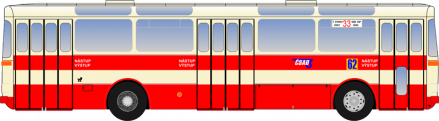

Karosa ŠM 11.1630 #62

Technical Data

Length 10985 mm
Width 2500 mm
Height 2955 mm
Height of floor 880 mm
Doors 3
Number of seats 31+1 (typ 1608)
29+1 (typ 1620)
Number of standing places 59
Design load 90+1 (typ 1608)
88+1 (typ 1620)
Weight of unloaded vehicle 7800 kg
Gross vehicle weight 14180 kg
Engine naftový vodou chladený šesťvalec s priamym vstrekovaním
Škoda ML 630 (prvé série)
Škoda ML 634 (novšie)
Continuous power output 132,4 kW / 2150 rpm (ML 630)
147,1 kW / 2000 rpm (ML 634)
Piston displacement 11150 cm3 (ML 630)
11946 cm3 (ML 634)
Maximum torque 690 Nm / 1300 - 1400 rpm (ML 630)
800 Nm / 1400 rpm (ML 634)
Maximum speed 65 km/h
Transmission Praga 2M 70, automatická, 2-stupňová
Axles RÁBA
