Vehicles › Buses › Ikarus 280

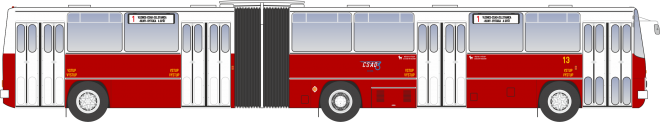

Ikarus 280.08 #13

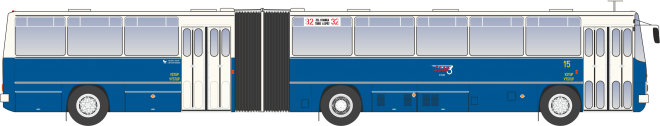

Ikarus 280.10 #15

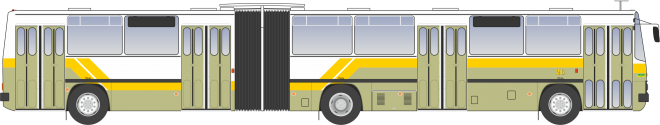

Ikarus 280.08 #26
Fleet List
| Set | Type | Fleet numbers | Manufactured | Into Service | Withdrawn | Quantity |
|---|---|---|---|---|---|---|
| 1. | Ikarus 280.10 | 17 | 1975 | 1975 | (?) | 1 |
| 2. | Ikarus 280.10 | 5 | 1980 | 1980 | 1996 | 1 |
| 3. | Ikarus 280.08 | 1 | (?) | (?) | (?) | 1 |
| 4. | Ikarus 280.08 | 13 – 14, 20 | 1983 | 1983 | 1995 | 3 |
| 5. | Ikarus 280.10 | 15, 25 | 1980's | (?) | 1990's | 2 |
| 6. | Ikarus 280.08 | 23 | 1984 | 1984 | 1995 | 1 |
| 7. | Ikarus 280.10 | 3, 7, 16, 17II, 19 | 1980's | 1985 | (?) | 5 |
| 8. | Ikarus 280.10 | 5II – 6II | 1986 | 1986 | 1990's | 2 |
| 9. | Ikarus 280.08 | 10, 19II, 26, 18 | 1988 | 1988 | 1990's | 4 |
| 10. | Ikarus 280.00 | 28 – 30 | 1989 | 1991 | 3 | |
| 11. | Ikarus 280.08 | 2, 31, 24, 11 | 1989 | 1989 | 1990's | 4 |
| 12. | Ikarus 280.08 | 9 | 1989 | 1990 | 1990's | 1 |
| 13. | Ikarus 280.08 | 28II | 1980 | 1992 | 1994 | 1 |
| Total: | 1975 – 1980's | 29 | ||||
Technical Data
| Length: | 16500 mm |
| Width: | 2500 mm |
| Height: | 3040 mm |
| Height of floor: | 940 mm |
| Doors: | 4 (280.08)
2 (280.10) |
| Number of seats: | 37 + 1 (280.08)
57 + 1 (280.10) |
| Number of standing places: | 110 (280.08)
59 (280.10) |
| Design load: | 147 + 1 (280.08)
116 + 1 (280.10) |
| Weight of unloaded vehicle: | 12500 kg (280.08)
13000 kg (280.10) |
| Engine: | RÁBA-MAN D 2156 HM6U
naftový, vodou chladený 6-valec s priamym vstrekovaním (rok výroby 1974 - 1977) RÁBA-MAN D 2356 HM6U naftový, vodou chladený 6-valec s priamym vstrekovaním (rok výroby 1978 - 1987) RÁBA-MAN D 2156 MT6UT naftový, vodou chladený 6-valec s priamym vstrekovaním, preplňovaný turbodúchadlom (rok výroby 1988) RÁBA-MAN D 2156 HM6UT naftový, vodou chladený 6-valec s priamym vstrekovaním, preplňovaný turbodúchadlom (rok výroby 1989) |
| Continuous power output: | 141 kW / 2100 rpm (RÁBA-MAN D 2156 HM6U)
162 kW / 2100 rpm (RÁBA-MAN D 2356 HM6U, RÁBA-MAN D 2156 HM6UT) 184 kW / 2200 rpm (RÁBA-MAN D 2156 MT6UT) |
| Piston displacement: | 10344 cm3 (RÁBA-MAN D 2156 HM6U, RÁBA-MAN D 2156 MT6UT, RÁBA-MAN D 2156 HM6UT)
10690 cm3 (RÁBA-MAN D 2356 HM6U) |
| Maximum torque: | 696 Nm / 1300 rpm (RÁBA-MAN D 2156 HM6U)
883 Nm / 1600 rpm (RÁBA-MAN D 2156 MT6UT) 820 Nm / 1600 rpm (RÁBA-MAN D 2156 HM6UT) |
| Maximum speed: | 63 km/h |
| Transmission: | Csepel HAFE ASH 75.2-A2.B2
manuálna (280.08, rok výroby 1974 - 1977) Csepel ZF S6-90U-734 manuálna (280.08 & 280.10, rok výroby 1978 - 1989) Praga 2 M 70 automatická, 2-stupňová s hydrodynamickým meničom (280.00) |
Vehicle catalogue
| 17 |
| 5 |
| 1 |
| 13 14 20 |
| 15 25 |
| 23 |
| 3 7 16 17II 19 |
| 5II 6II |
| 10 19II 26 18 |
| 28 29 30 |
| 2 31 24 11 |
| 9 |
| 28II |
- Number of vehicles in service: 0 (0%)
- Number of withdrawn vehicles: 29 (100%)
Legend
| 28II | withdrawn vehicle |
| 28II | fleet number 28 used 2 times by this type of vehicle |
