Fleet List

Batch Type Fleet numbers Manufactured Into Service Withdrawn Quantity
1. Škoda 25 Tr Irisbus 704 2006 2006 2022 1
2. Škoda 25 Tr Irisbus 707 – 708 2007 2007 2023 2
3. Škoda 25 Tr Irisbus 709 – 710 2008 2008 from 2023 2
Total 2006 – 2008   5

Technical Data

Length 17900 mm (#704, #707 - 708)
18000 mm (#709 - 710)
18400 mm (#704, #707 - 708; so stiahnutými zberačmi)
18500 mm (#709 - 710; so stiahnutými zberačmi)
Width 2500 mm
Height 3460 mm
Height of floor 320 mm (1. dvere)
330 mm (2. - 4. dvere)
Wheelbase 5355 mm (1. - 2. náprava)
6575 mm (2. - 3. náprava)
Doors 4
Number of seats 40 + 1
Number of standing places 92 / 85 (s invalidným vozíkom / kočíkom)
Design load 132 + 1 / 125 + 1 (s invalidným vozíkom / kočíkom)
Weight of unloaded vehicle 17700 kg
Gross vehicle weight 28000 kg
Motor control Škoda Electric, založená na IGBT tranzistoroch, s rekuperáciou
Engine Škoda 18ML 3550 K/4, asynchrónny
Continuous power output 240 kW
Number of motors 1
Total power output 240 kW
Maximum speed 65 km/h
Axles predná: Renault E 70 XH
stredná: Renault EM 10 A
zadná: ZF AV 132.80, portálová, hnacia

Photos

Vehicle catalogue

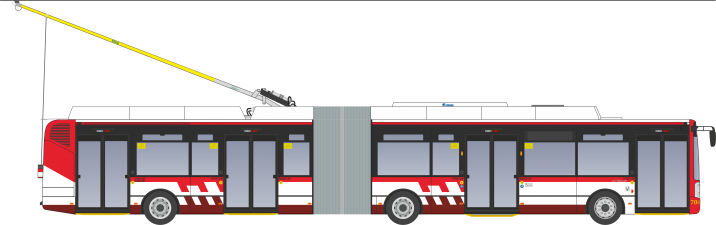

704

707 708

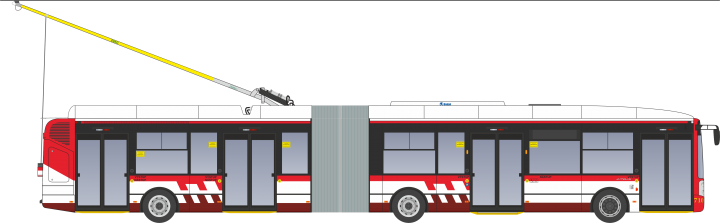

709 710

Legend and statistics

709vehicle in service: 1 (20 %)
709vehicle ot of service (more than 2 weeks): 1 (20 %)
709vehicle ot of service (more than 6 months): 1 (20 %)
704withdrawn vehicle: 4 (80 %)
Vehicle can be assigned to multiple categories, only the most important category is colored.
Share of operational vehicles in service per day in the last month: 0 %, Monday to Friday 0 %
