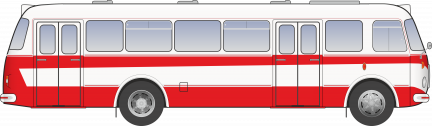

Škoda 706 RTO

Fleet List

Batch Type Fleet numbers Manufactured Into Service Withdrawn Quantity
1. Škoda 706 RTO SN 20-87, SN 26-52, SN 26-56, SN 26-67, SN 27-36 1970 – 1973 1980's 5
2. Jelcz MEX 272 E SN 31-97, SN 32-34 1975 1980's 2
3. Jelcz MEX 272 E SN 46-15 – SN 46-16 1979 1986 2
Total 1970 – 1979   9

Technical Data

Length 10520 mm
10810 mm (s ťažným zariadením)
10870 mm (Jelcz MEX 272)
Width 2500 mm
Height 2900 mm
Height of floor 885 mm
Wheelbase 5450 mm
Doors 2 + 1 manipulačné pre vodiča
Number of seats 22 + 2
Number of standing places 55
Design load 77 + 2
Weight of unloaded vehicle 8570 kg
Gross vehicle weight 14400 kg
Engine Škoda 706 RT, naftový, vodou chladený 6-valec s priamym vstrekovaním
Continuous power output 117,6 kW / 1900 rpm
Piston displacement 11781 cm3
Maximum speed 66 km/h
Transmission Praga, manuálna, 5-stupňová

Vehicle catalogue

SN 20-87 SN 26-52 SN 26-56 SN 26-67 SN 27-36

SN 31-97 SN 32-34

SN 46-15 SN 46-16

Legend and statistics

SN 20-87withdrawn vehicle: 9 (100 %)
