Vehicles › Buses › Karosa B 732

Fleet List Technical Data Photos Vehicle catalogue

Karosa B 732.20 #48

Karosa B 732.20 #42

Karosa B 732.40 #80

Karosa B 732.1654 #104

Karosa B 732.1654 #89

Karosa B 732.1660 #94

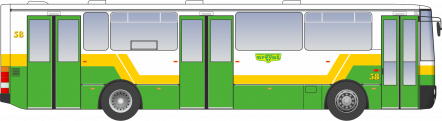

Karosa B 732.1652 #58 after rebuild in Rošero-P

Fleet List

Set	Type	Fleet numbers	Manufactured	Into Service	Withdrawn	Quantity
1.	Karosa B 732.00	99, 29	1986	1986	1993 – 1997	2
2.	Karosa B 732.20	34 – 35, 37, 40, 42, 45, 48, 52	1987	1987	1998 – 2007	8
3.	Karosa B 732.20	41, 47, 56, 77 – 78, 84, 87 – 88	1988	1988	1989 – 2006	8
4.	Karosa B 732.40	106, 49, 105, 107, 104, 103	1989	1989	1993 – 2007	6
5.	Karosa B 732.1652	41, 54 – 55, 58, 100, 61 – 62, 68, 73, 83, 90	1990	1990	1993 – 2013	11
6.	Karosa B 732.1654	100_II, 101 – 102, 103_II – 105_II	1992	1992	2007 – 2015	6
7.	Karosa B 732.20	75	1988	1994	2006	1
8.	Karosa B 732.20, Karosa B 732.40	70 – 71, 74	1988 – 1989	1995	2003 – 2005	3
9.	Karosa B 732.1658	81 – 82	1995	1995 – 1996	2008 – 2010	2
10.	Karosa B 732.1654	89	1996	1996	—*	1
11.	Karosa B 732.20	93	1987	1996	2004	1
12.	Karosa B 732.1660	93_II, 94 – 98, 99_II	1996	1996	2007 – 2019	7
Total			1986 – 1996			56
* Historic vehicle saved

Technical Data

Length	11055 mm (732.00, 732.20, 732.40, 732.1652, 732.1654) 11347 mm (732.1658, 732.1660)
Width	2500 mm
Height	3165 mm
Height of floor	890 mm
Wheelbase	5600 mm
Doors	3
Number of seats	31 + 1
Number of standing places	59 (732.00) 63 (732.20, 732.40, 732.1652, 732.1654, 732.1658, 732.1660)
Design load	90 + 1 (732.00) 94 + 1 (732.20, 732.40, 732.1652, 732.1654, 732.1658, 732.1660)
Weight of unloaded vehicle	9400 kg (732.00, 732.20, 732.40) 9500 kg (732.1652, 732.1654) 10100 kg (732.1658, 732.1660)
Gross vehicle weight	15780 kg (732.00, 732.20, 732.40) 16000 kg (732.1652, 732.1654) 17000 kg (732.1658, 732.1660)

Engine	LIAZ ML 635, naftový, vodou chladený, nepreplňovaný 6-valec s priamym vstrekovaním (732.00) LIAZ ML 636, naftový, vodou chladený, preplňovaný 6-valec s priamym vstrekovaním (732.20, 732.40, 732.1652, 732.1654) LIAZ ML 636 P, naftový vodou chladený 6-valec s priamym vstrekovaním
Continuous power output	148,5 kW / 2100 rpm (ML 635) 152 kW / 2000 rpm (ML 636) 155 kW / 2000 rpm (ML 636 P)
Piston displacement	11940 cm³
Maximum speed	70 km/h
Transmission	Praga 5P 80 manuálna, 5-stupňová, pri jednotlivých sériách postupne vylepšovaná Praga 5P 115 manuálna, 5-stupňová (732.1658, 732.1660)
Steering wheel	Technometra 712 HRSB-350-6-01, hydraulické monoblokové servoriadenie
Axles	predná: LIAZ 442, nezávislé zavesenie kolies, lichobežníková konštrukcia zadná: RÁBA A 118.37, tuhá s dvojstupňovou redukciou, hnacia (732.00) zadná: RÁBA A 007.24, tuhá, jednostupňová, hnacia (732.20) zadná: RÁBA A 009, tuhá, jednostupňová, hnacia (732.40, 732.1652) zadná: Detva 11N DKT, tuhá, hnacia (732.1654, 732.1658, 732.1660)
Tyres	10,00 R 20 295/80 R 22,5

Photos

Karosa B 732.20

Karosa B 732.20

Karosa B 732.1654

Karosa B 732.1652

Karosa B 732.1654

Karosa B 732.1660

Interior

Driver's cockpit

Vehicle catalogue

91 32
34 35 37 40 42 45 48 52
41 47 56 77 78 84 87 88
38 49 65 80 66 67
41 54 55 58 60 61 62 68 73 83 90
100II 101 102 103II 104II 105II
75
70 71 74
81 82
89
92
93II 94 95 96 97 98 99II

Legend and statistics

89	vehicle in service: 1 (1.8 %)
89	vehicle ot of service: 1 (1.8 %)
91	withdrawn vehicle: 55 (98.2 %)
89	historic vehicle: 1 (1.8 %)
100II	fleet number 100 used 2 times by this type of vehicle

Vehicle can be assigned to multiple categories, only the most important category is colored.

Renumbered Fleet Numbers

1.		2.		3.
29		108	from 1989	32	from 1992
93	from 1996	92	from 1996
99		91	from 1996
100		60	from 1992
103		67	from 1992
104		66	from 1992
105		65	from 1992
106		38	from 1992
107		80
