Ikarus 435 • imhd.sk Bratislava

Fleet List

Set	Type	Fleet numbers	Manufactured	Into Service	Withdrawn	Quantity
1.	Ikarus 435.18	4800 – 4811	1995	1996	2011 – 2017*	12
2.	Ikarus 435.18B	2800 – 2804, 4820 – 4824	1996	1997	2010 – 2015	10
3.	Ikarus 435.18E	1800 – 1801, 2805 – 2808, 4825 – 4827	1997	1998	2009 – 2011*	9
4.	Ikarus 435.18F	1802 – 1821, 2809 – 2831, 4828 – 4849	1998	1998	2009 – 2016	65
Total			1995 – 1998			96
* Historic vehicle saved

Technical Data

Length	17850 mm
Width	2500 mm
Height	3040 mm
Height over air conditioning	3115 mm
Height of floor	760 mm
Wheelbase	5570 a 6410 mm
Doors	4
Number of seats	40 + 1
Number of standing places	125
Design load	165 + 1
Weight of unloaded vehicle	15100 kg

Gross vehicle weight	26300 kg
Engine	MAN D 0826 LUH 10, Euro 1, naftový, vodou chladený 6-valec s priamym vstrekovaním (435.18) MAN D 0826 LUH 13, Euro 2, naftový, vodou chladený 6-valec s priamym vstrekovaním (435.18B, 435.18E, 435.18F)
Continuous power output	198 kW / 2400 rpm (MAN D 0826 LUH 10) 191 kW / 2300 rpm (MAN D 0826 LUH 13)
Piston displacement	6871 cm³
Maximum torque	1000 Nm / 1350-1700 rpm (LUH 13)
Maximum speed	73,4 km/h
Transmission	ZF Ecomat 4 HP 500, automatická, 4-stupňová s hydraulickým retardérom
Axles	predná: RÁBA 632.05, tuhá, riadená (435.18, 435.18B) predná: RÁBA 932, tuhá, riadená (435.18E, 435.18F) stredná: RÁBA 572.76, tuhá, vlečená zadná: RÁBA BDR 28.60DA, tuhá s dvojstupňovou redukciou, hnacia (435.18, 435.18B) zadná: ZF (435.18E) zadná: RÁBA, tuhá s jednostupňovou redukciou, hnacia (435.18E, 435.18F)
Tyres	8,25 x 22,5"

Photos

Ikarus 435.02P1 tested in Bratislava

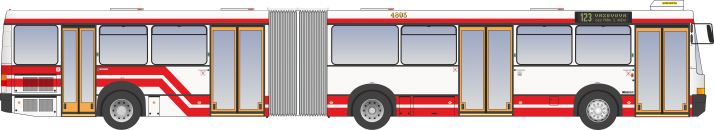

Ikarus 435.18

Interior of Ikarus 435.18

Interior

Ikarus 435.18B

Ikarus 435.18E

Interior

Driver's cockpit

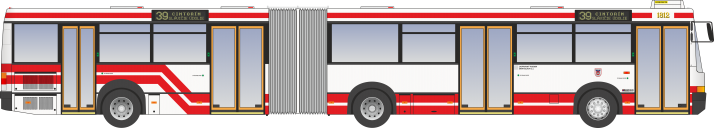

Ikarus 435.18F

More pictures

Vehicle catalogue

4858 4801 4802 4803 4806II 4805 8009 4807 4808 4809 4810 4811

4860 4861 4814 4813 4812 4820 4821 4822 4823 4824

4859 1801 4819 4816 4817 4818 4825 4826 4827

4870 4871 1804 4872 4873 4874 4875 1809 1810 4876 4877 4878 4879 1815 4852 4853 4854 4855 4856 4851 2809 2810 4862 2812 2813 2814 4815 4863 4864 2818 2819 2820 4850 4865 4866 4867 2825 4868 4869 2828 2829 4857 2831 4828 4829 4830 4831 4832 4833 4834 4835 4836 4837 4838 4839 4840 4841 4842 4843 4844 4845 4846 4847 4848 4849

Legend and statistics

4806II	vehicle in service: 2 (2.1 %)
4806II	vehicle ot of service (more than 6 months): 2 (2.1 %)
4858	withdrawn vehicle: 94 (97.9 %)
4806II	historic vehicle: 2 (2.1 %)
4806II	fleet number 4806 used 2 times by this type of vehicle

Vehicle can be assigned to multiple categories, only the most important category is colored.

Renumbered Fleet Numbers

1.		2.		3.		4.
1800	1998 - 2007	2832	2007 - 2008	4859	from 2008
1802	to 2009	4870	from 2009
1803		4871	from 2009
1805	to 2009	4872	from 2009
1806	to 2009	4873	from 2009
1807	to 2009	4874	from 2009
1808	to 2009	4875	from 2009
1811	to 2009	4876	from 2009
1812	to 2009	4877	from 2009
1813	to 2009	4878	from 2009
1814	to 2009	4879	from 2009
1816		4852	from 2006
1817		4853	from 2006
1818		4854	from 2006
1819		4855	from 2006
1820		4856	from 2006
1821	to 2006	4851	from 2006
2800	to 2003	1825	2003 - 2004	2800	2004 - 2009	4860	from 2009
2801	to 2003	1826	2003 - 2004	2801	2004 - 2009	4861	from 2009
2802	to 2003	1824	2003 - 2005	4814	from 2005
2803	to 2002	1823	2002 - 2004	4813	from 2004
2804	to 2003	4812	from 2003
2805	to 2002	4819	from 2002
2806	to 2003	1827	2003 - 2005	4816	from 2005
2807	to 2002	1822	2002 - 2004	4817	from 2004
2808	to 2003	4818	from 2003
2811	to 2009	4862	from 2009
2815	to 2003	1829	2003 - 2006	4815	from 2006
2816	to 2003	1830	2003 - 2004	2816	2004 - 2009	4863	from 2009
2817	to 2009	4864	from 2009
2819	to 2004	1831	from 2004	2819	from 2004
2821	to 2003	4850	from 2003
2822	to 2002	1828	2003 - 2004	2822	2004 - 2009	4865	from 2009
2823	to 2009	4866	from 2009
2824	to 2009	4867	from 2009
2826	to 2009	4868	from 2009
2827	to 2009	4869	from 2009
2830		4857	from 2006
4800	to 2007	4858	from 2007
4804	from 2017	4806_II	from 2017
4806		8009
